EUNORAU hub motor kit have 36V250W version,36V350W version,48V500W version, and 48V1000W version,250W version, 350W version, and 500W version is for street use, 1000W version is for off-road use,250W kit with front wheel motor,sin-wave controller and colorful LCD display with USB plug, 350w kit with rear wheel motor,sine-wave controller and colorful LCD display with USB plug 500w kit with front wheel motor,block-wave controller and colorful LCD display with USB plug the 1000W kit with rear wheel motor,sin-wave controller and colorful LCD display with USB plug. It will make your life with fun after making the bike to electric, all the parts are compatible with BBS motor kit from Bafang, so you can select the BBS motor spare parts for this hub motor kit too. If you have motor and battery already, you can buy controller sets from EUNORAU shops too.
Specifications:
Top Speed: 35-40km/h base on 28inch wheel
Battery Life: Over 800 Charges
Charge Time: 5 Hours
Kit Includes:
1.36V350W rear cassette hub motor kit with 20/24/26/27.5/28inch rim
2.36V18A sin-wave controller(no noise) L:91mm W:62.5mm H:41mm
3.850C/DPC-14 colorful TFT display
4.EB-BUS cable 1T4(same as BBS)
5:Right Thumb throttle
6.Torque sensor(68mm)
7. Brake-2(keep your bike original brake lever)
8.Controller Box
*9. Battery(not included, check out from here)
The Difference Between BTN&ENA Kit System |
||
Items |
BTN KIT SYSTEM |
ENA KIT SYSTEM |
Motor |
Works with Shengyi&Bafang motors |
Works with Shengyi& Bafang motors,More silent |
Battery |
No communication between battery and controller |
UART 5.8 communication between battery and controller |
Controller |
All cables open wire(No harness) |
HIGO Water-proof connectors with Harness |
PAS |
All different PAS sensor |
Only works with double hall PAS sensor or Torque sensor |
Display |
KT LED&LCD |
All ENA(UART) Displays, More display for optional |
Brake |
All different brake sensor |
All different brake sensor |
Throttle |
All different throttle |
All different throttle |

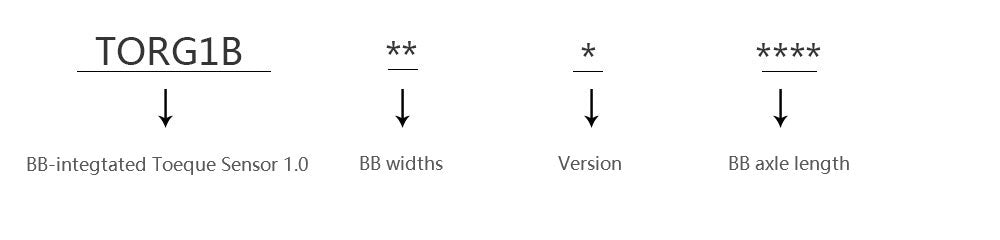

*Torque Sensor Profile
