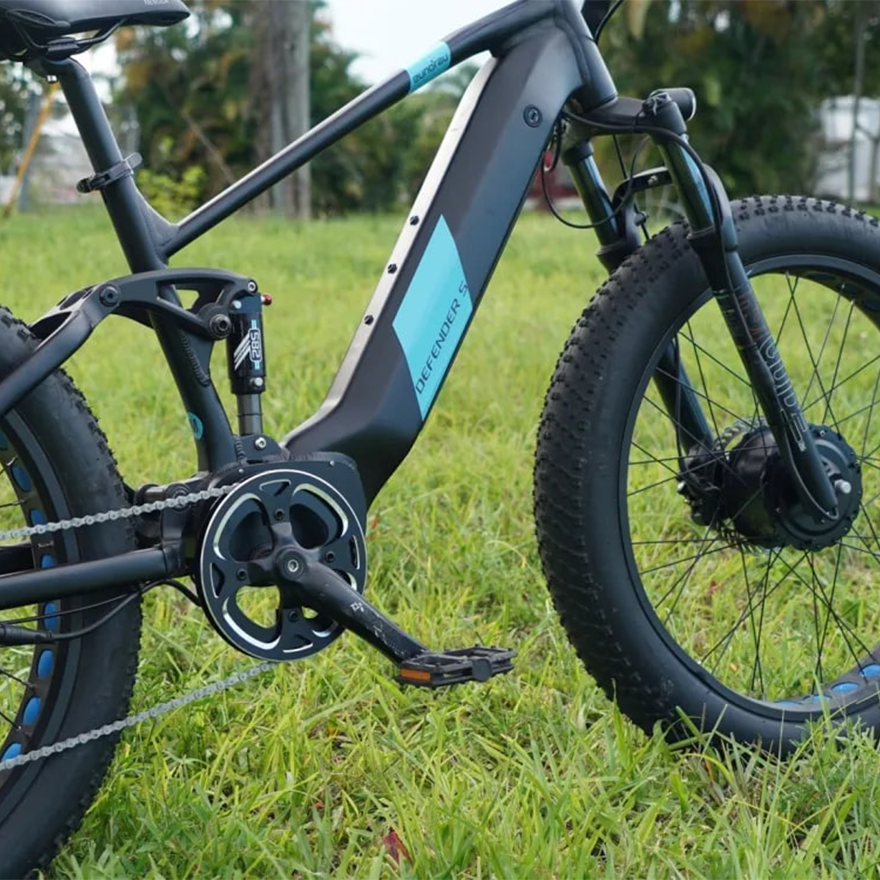

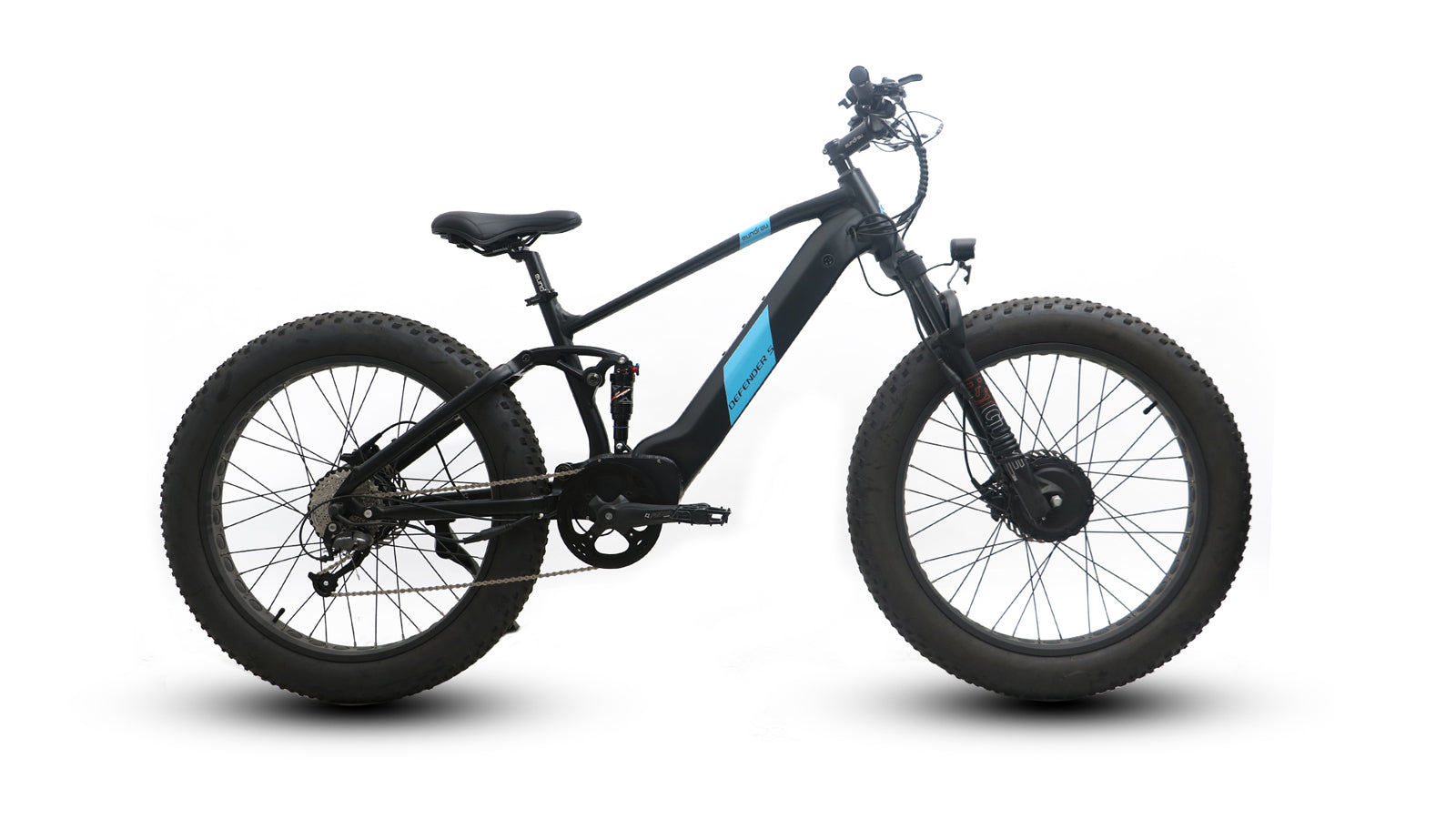

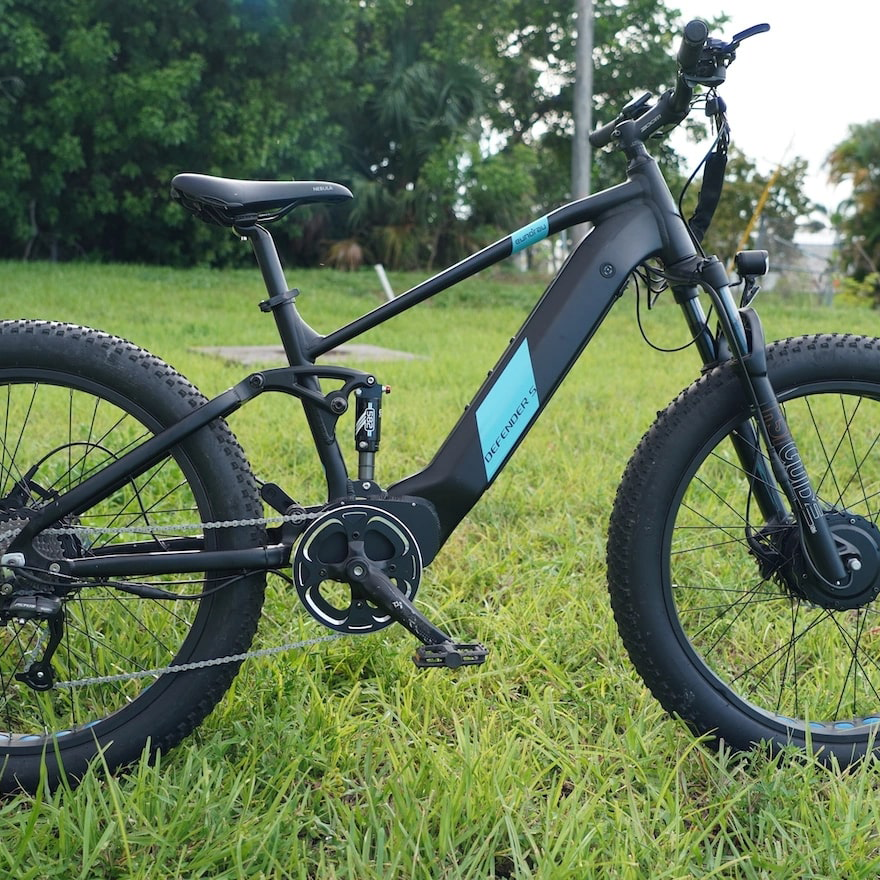

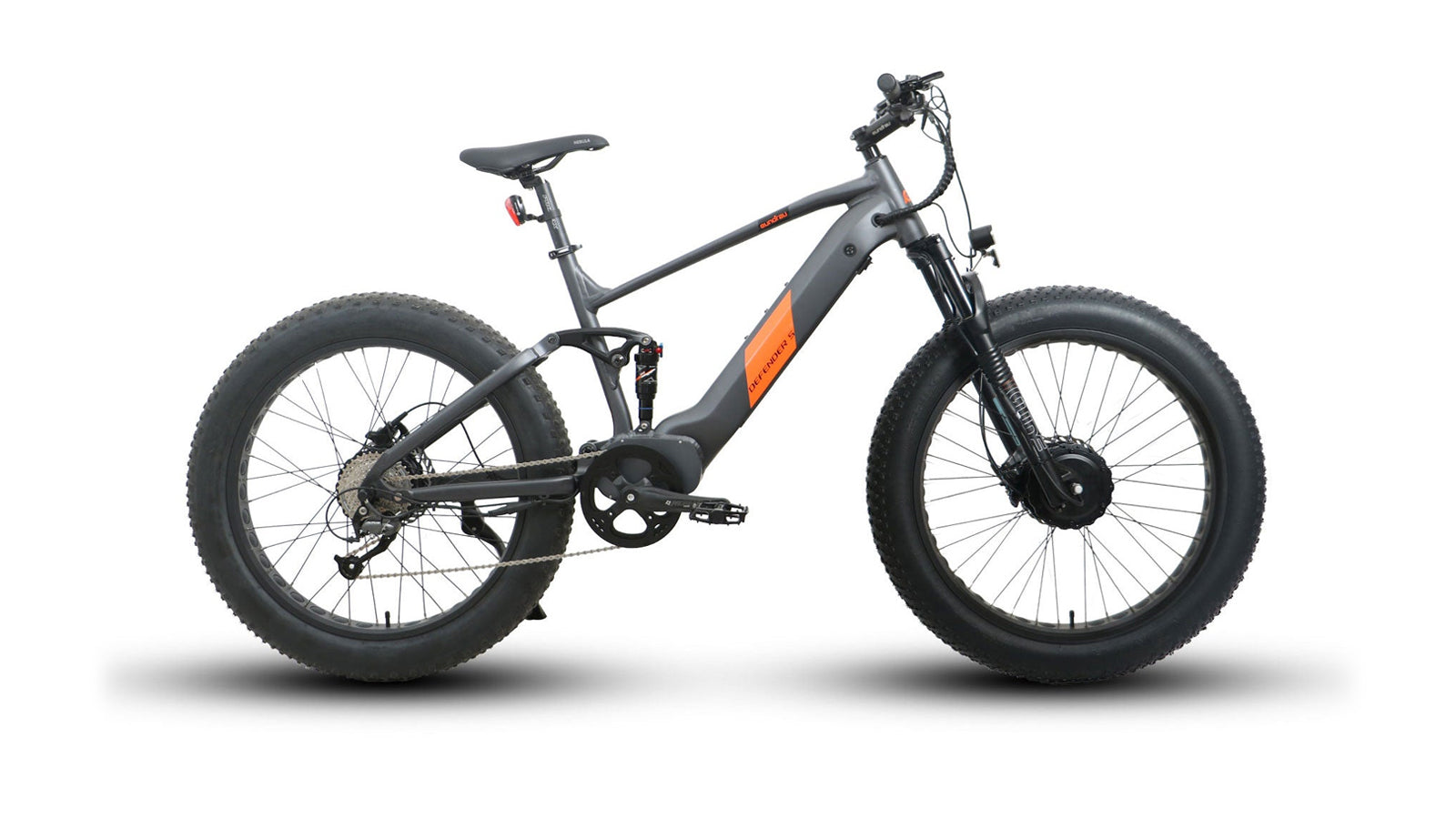

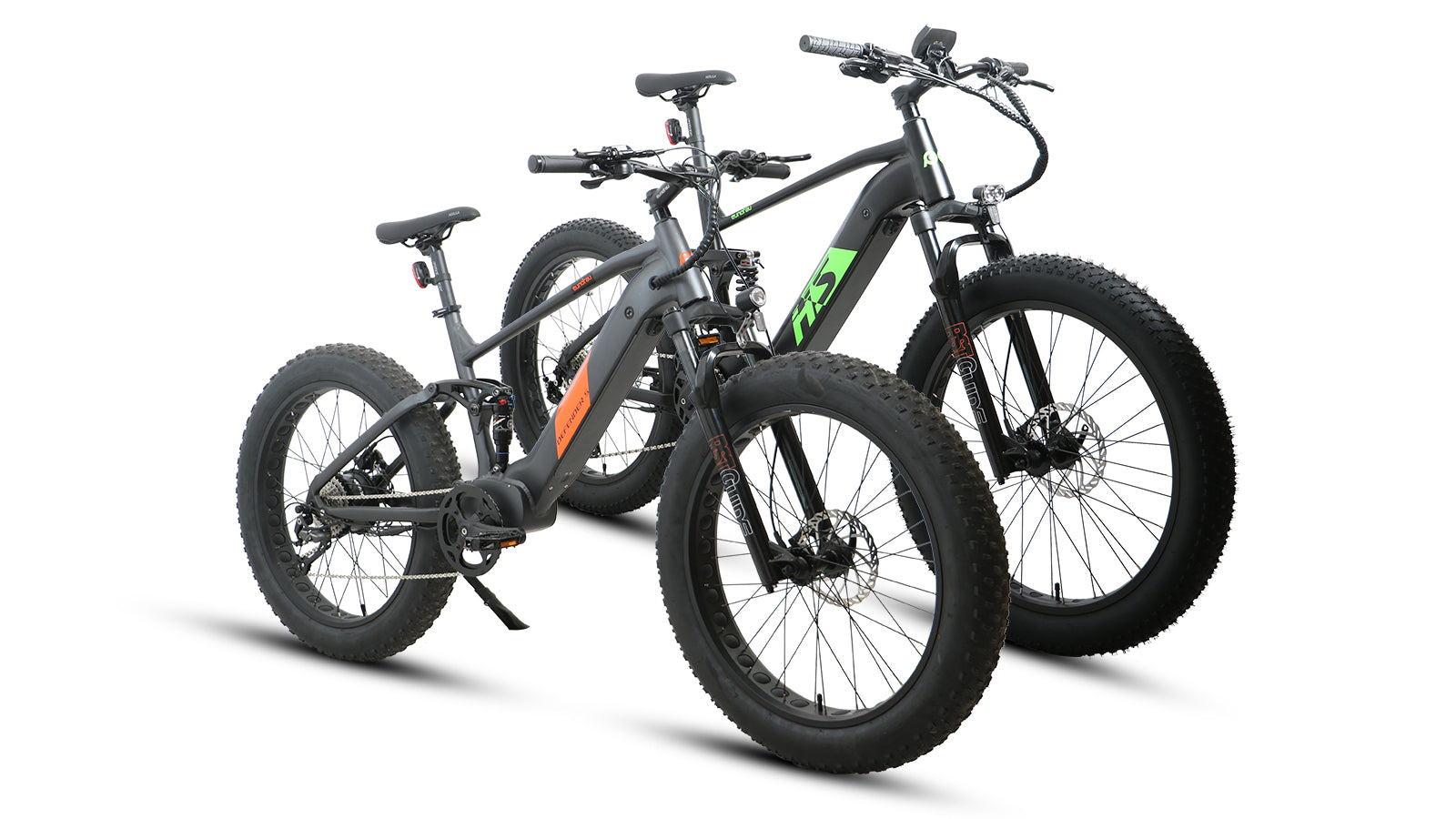

Defender-S & Fat-HS
Specification
- Battery: 48V/15Ah + Optional 15Ah Battery
- Range: 130+ km (48V17Ah SAMSUNG Cells + Second battery)

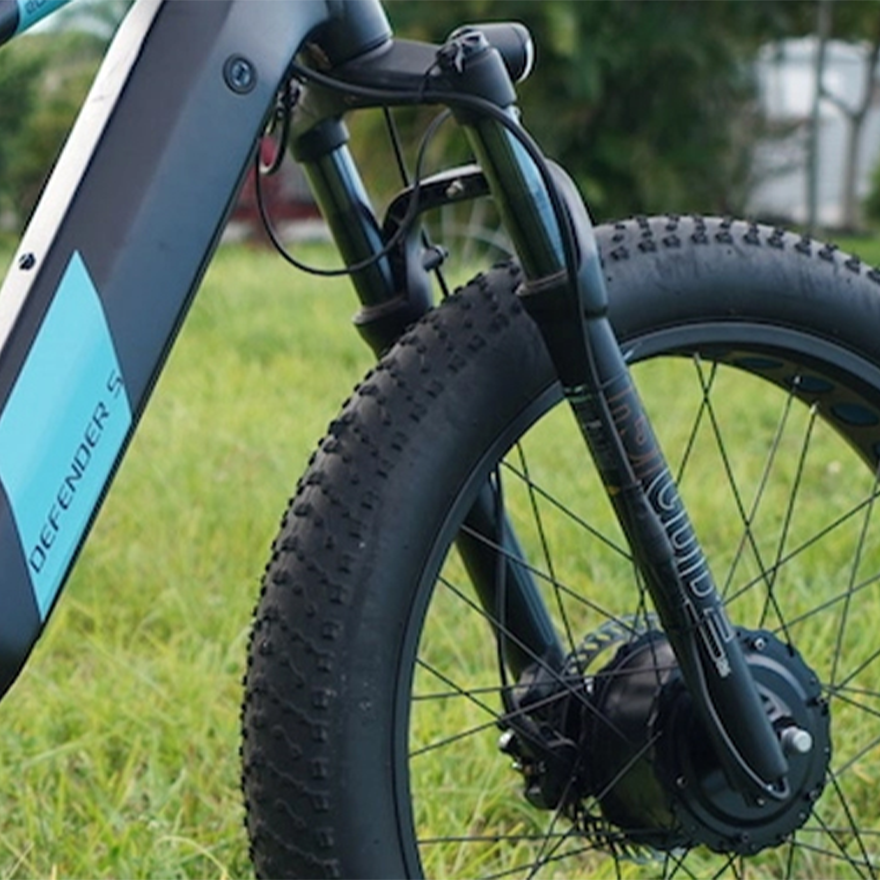

- Hub Motor: 48V750W+750W BAFANG motor with 80 N.m+80 N.m torque
- Total Payload Capacity: 136 kg
- Recommended Rider Heights: 159~193 cm
- Maximum Speed: 32 km/h
- Charger: AU standard 2.0 A smart charger
- Controller: 48V 22A * 2
- Display: C3 / BC182 LCD Display
- Weight: 38 kg
- Pedal Assist Intelligent: 0~5 level pedal assist
- Box Dimensions: (cm) 170 L x 32.5 W x 85 H
Components
- Tyres: KENDA sport tyres 26" x 4.0"
- Brake Lever: Hydraulic disc brake levers with motor cutoff switch
- Rear Light: Taillight
- Shifter: SHIMANO ALIVIO 9 speed gear shift system
- Brake Rotor:EUNORAU design 180MM hydraulic disc brakes
- Throttle: Thumb throttle
- Stem: EUNORAU TDS-D507G-8FOV
- Crank: 170mm forged alloy
- Cassette: Shimano 11-34T
- Fork: RST GUIDE 75mm Travel suspension fork

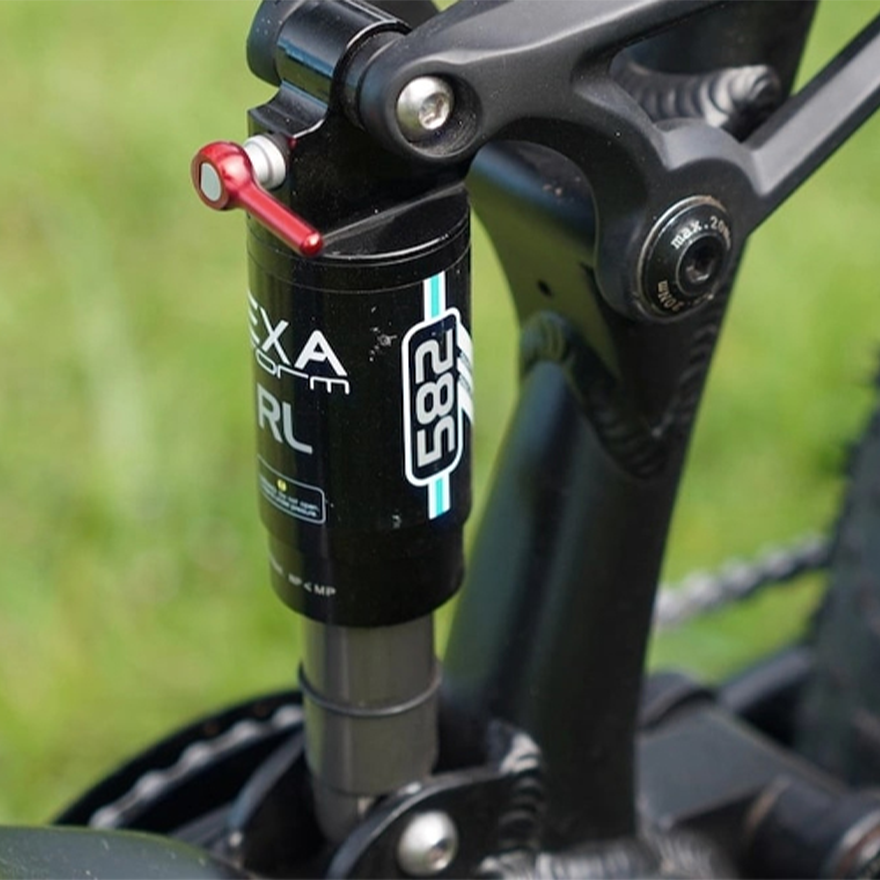

- Shock: EXA KS582ļ¼165L
- Saddle: JUSTGK TTZ003 Saddle, Height to Ground 90-105 cm
- Pedal: Nylon pedal with reflectors
- Frame: Aluminum alloy 6061 full suspension
- Front Light: 40 lux LED light
- Tool: Included
- Chainring: 44Tasluminum chain wheel with protection
- Rims: 26 inch black alloy wheels
Geometry

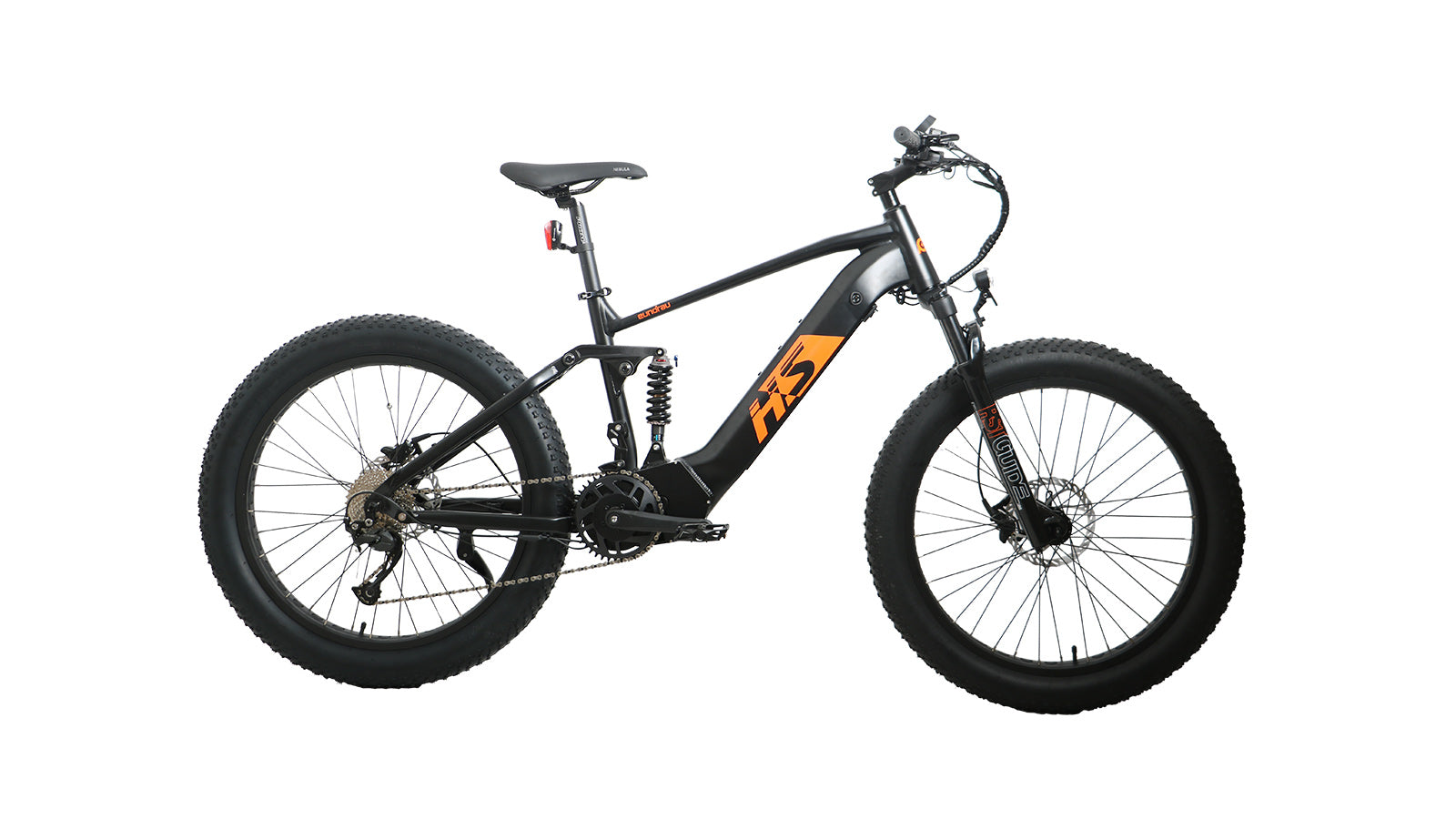

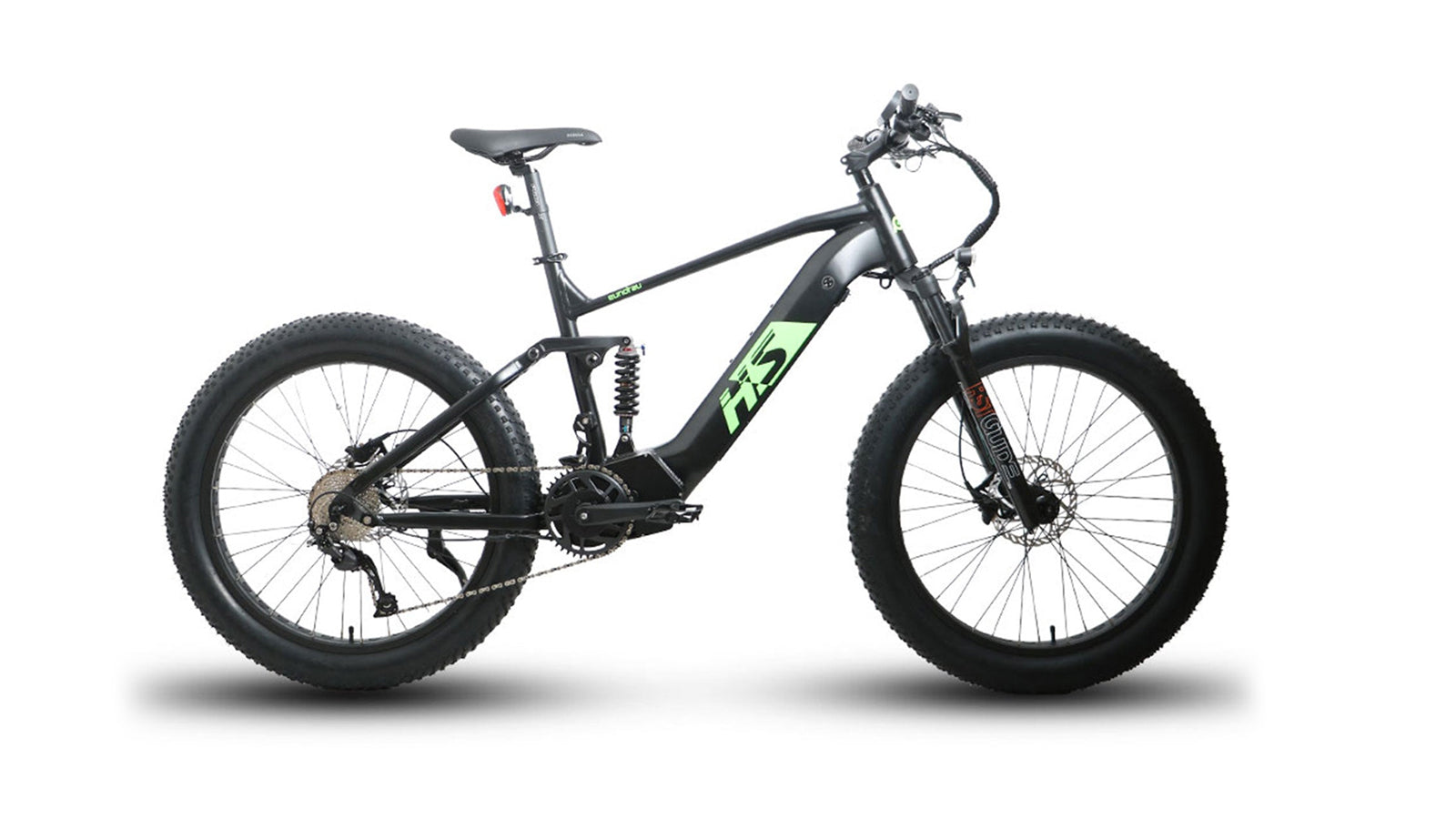

Specification
- Battery: 48V15Ah Standard + Optional second battery 48V15Ah)
- Range: 130 km (48V/17Ah SAMSUNG Cells + Second battery 48V15Ah)

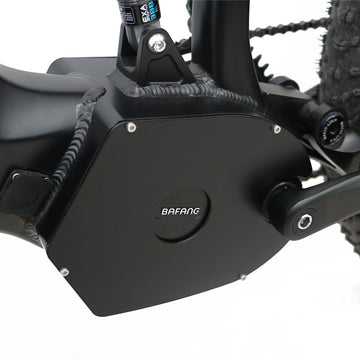

- Motor: 48V1000W Bafang M615 mid motor with 160 N.m torque
- Total Payload Capacity: 136 kg
- Recommended Rider Heights: 159~193 cm
- Maximum Speed: 45 km/h
- Charger: AU standard 2.0 A smart charger
- Controller: 48V
- Display: CDC6 LCD display
- Weight: 35 kg
- Pedal Assist Intelligent: 0~5 level pedal assist
- Box Dimensions: (cm) 172 L x 35 W x 85 H
Components
- Tyres: Kenda tyres 26" x 4.0"
- Brake lever: Hydraulic disc brake levers with motor cutoff switch
- Rear Light: Taillight
- Shifter: SHIMANO ALTUS/SUNRACE RDM91 - 9 speed gear shift system
- Brake Rotor:EUNORAU design 180MM hydraulic disc brakes
- Throttle: Thumb throttle
- Stem: EUNORAU TDS-D507G-8FOV
- Crank: 170mm forged alloy
- Cassette Shimano 11-34T

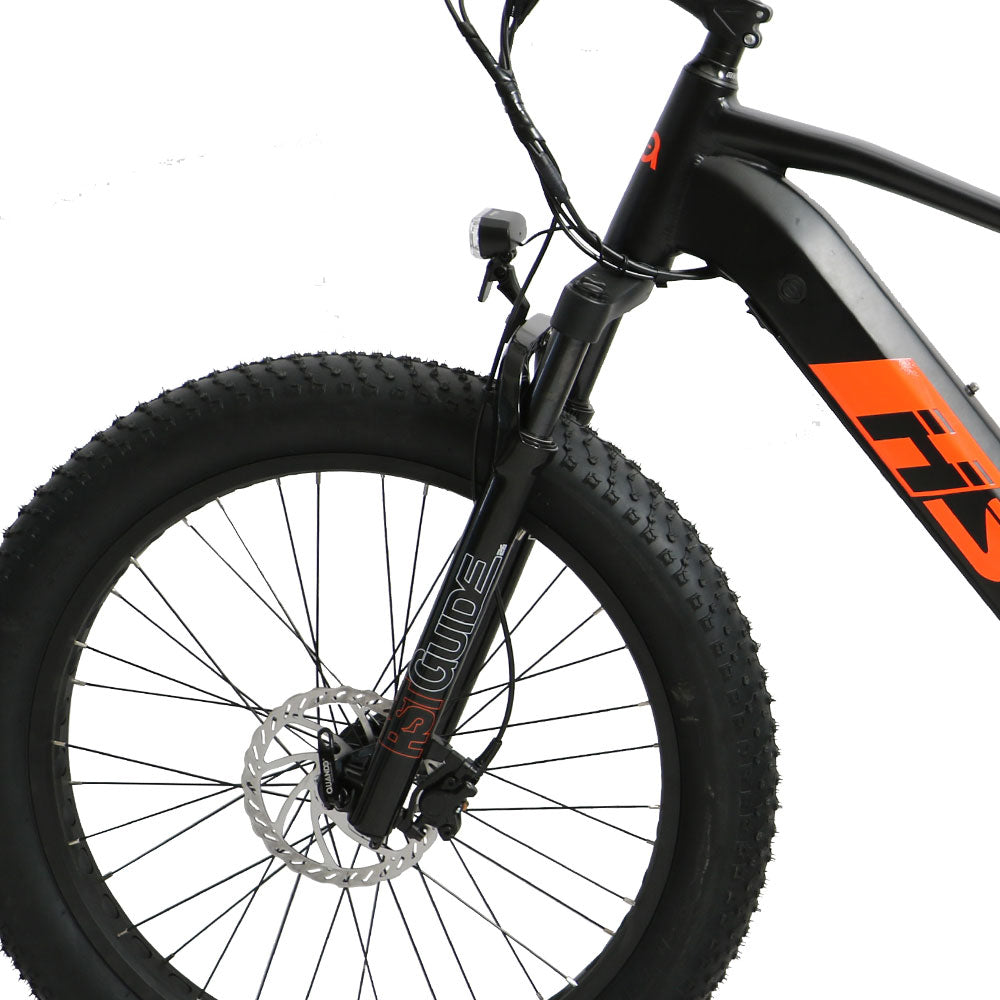

- Fork: RST GUIDE 75mm travel
- Shock: KS-388RL,48mm (To avoid any damage, please lock out the rear shock when you install the 17A second battery)
- Pedal: Nylon pedal with reflectors
- Frame: Aluminum alloy 6061 full suspension
- Front Light: 6-60V LED light
- Saddle: Comfort Saddle, Height to Ground 94-110 cm
- Tool: Included
- Chainring: 42T 7075 CNC chain-wheel crank
- Rims: 26 inch black alloy wheels
On this e-bike, the left lever operates the front brake and the right lever operates the rear brake.
In Australia, the standard setup is usually the reverse.
Geometry

1-3Ā business days.
Shipping time:
Based on theĀ Shipping address and Shipping methods.
Ā
Shipping MethodsA.Ā Electric bikes FREE SHIPPING (excluding remote areas)Ā to Australia will ship from the warehouse located at Victoria. Estimate delivery time 5-7 days.
B.Ā AccessoriesĀ & Batteries ship by Australia Post/FASTWAY. Estimate delivery timeĀ 5-9Ā days.
Ā
Shipping Fees
Accessories (excluding Trailers):
- Ā Ā The order amountĀ is more than 100 AUD,Ā Ā FREE SHIPPING;
- Ā Ā The order amount is lessĀ than 100 AUD,Ā Ā +15Ā AUD as a shipping fee.
E-bikes & Trailers:
- For Victoria, South Australia, New South Wales, Australian Capital Territory, Queensland: FREE SHIPPING;
- For Northern Territory, Western Australia, Tasmania:
+200AUD per e-bike, excepting:
a, +100AUD per kids ebike or trailer,
b, +500AUD per trike ebike.
Note:
If out of stock at local & nearby warehouses, the AccessoriesĀ & BatteriesĀ you purchased will directly ship from an overseas warehouse.Ā If applicable, there may be no tracking progress generation fromĀ Australia Post until the package arrives destination country and clears customs.Ā Estimate delivery time 10-15 business days.
*Ā SincerelyĀ appreciated for your patience in advance!

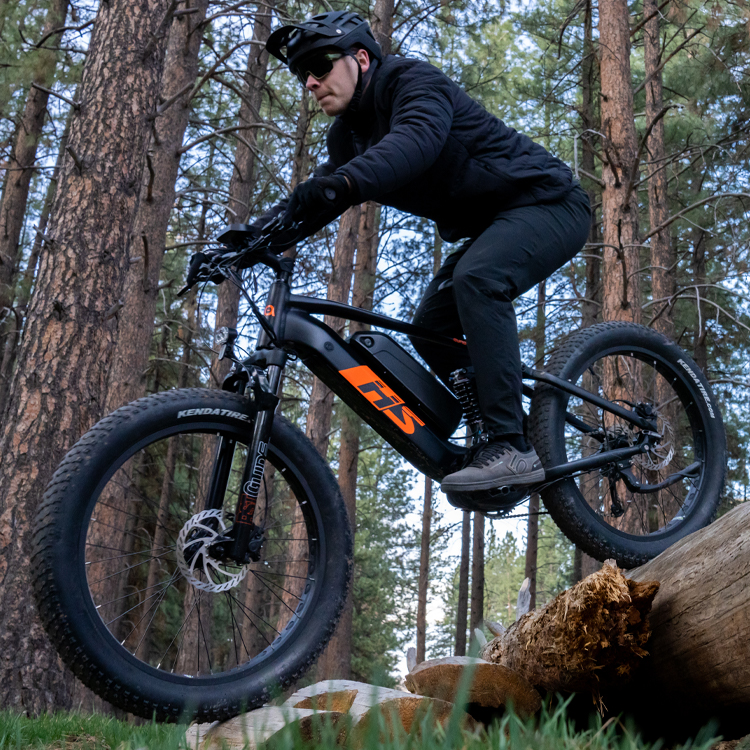

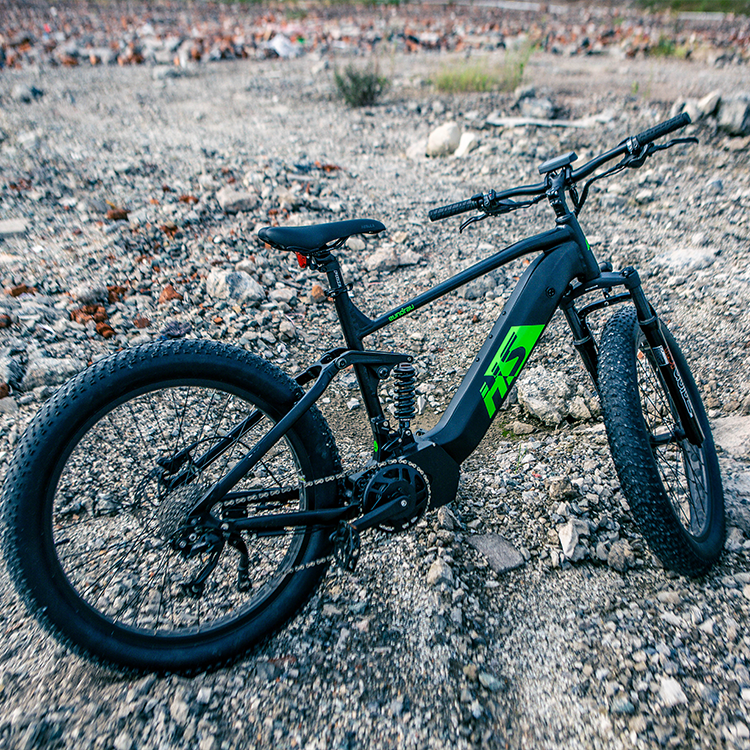

EUNORAU FAT-HS
